Product Description

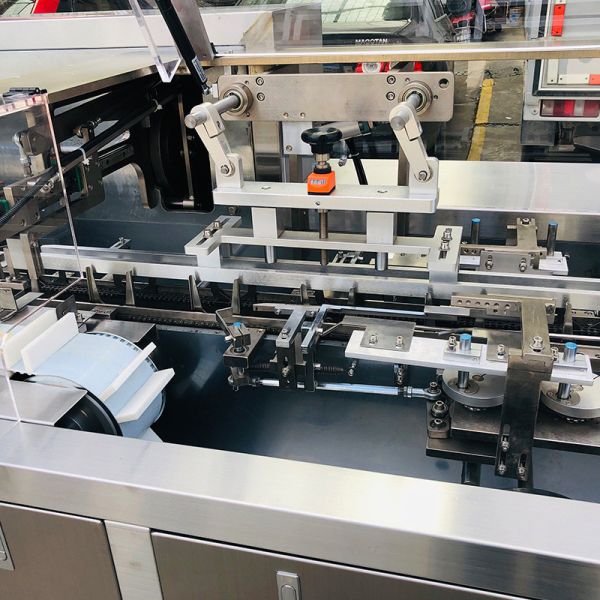

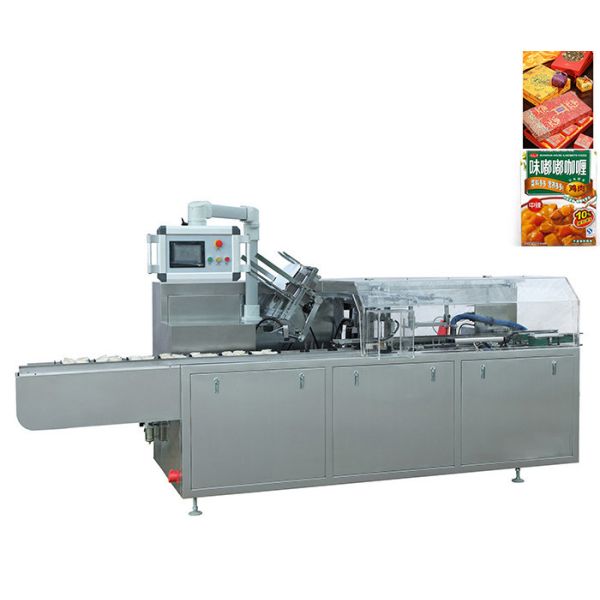

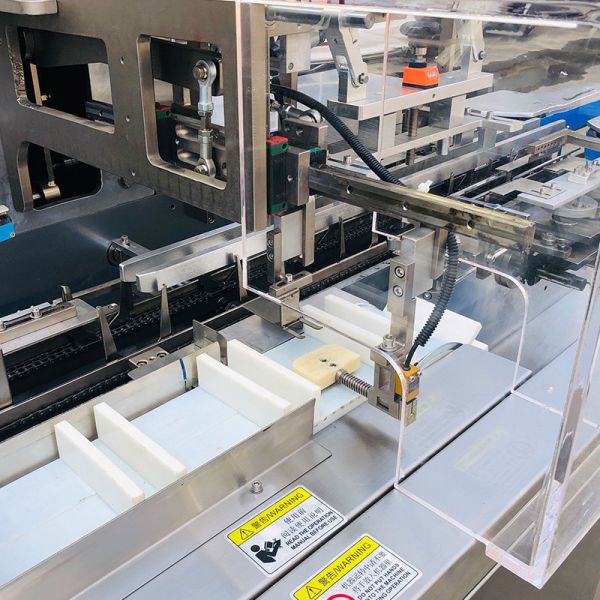

200B Automatic Carton Packing Machine For Biscuits
-Continuous mechanical feeding materials and carton packing, and working of each functional part is harmony, stable and reliable.
-When materials do not reach correct position, the pusher has an alarm and halt facility for that, in order to ensure good quality of carton packaging and safety in peroration effectively.
-Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.
-Vibrating material categorizing and feeding mechanism is stable and reliable.
-Halt facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.
-It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.
-Variable frequency speed regulation, PLC automatic control, operating on touch screen, words and numeric display, easy to opera tem staked coeddicients in operation.
-Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure.
Main features
1) International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2) Adopt human-machine operation system.
3) Automatically stop when machine is overload.
4) Automatically reject lacking of package product and leaflet.
5) Automatically display trouble, Alarm and count finished products.
6) Stable performance,operation is easy.
Main technical specification:
| Cartoning speed | 30-70Box/min |
| Box | Dimension range(L×W×H) | L(70-320)*W(50-250)*H(20-90)mm |
| Leafle | Thickness requirement | 55-65g/㎡ |
| Voltage | 220/380V, 50HZ( can make according to your request) |
| Power | 1.5KW |
| Machine size | L4300*W1600*H1900MM |
| Weight | 1200KGS |
| Compressed air | ≥0.6mpa, 20m³/H |
Widely usage:Pharmaceuticals, food,cosmetics, daily necessities, toys and other industries
Material details:
| carton box thickness | 250-450gsm |
Product Tags:
|
|
CE Pharmaceutical Cartoning Machine , PLC Touch Biscuit Packing Machine 1200KGS Images
|
