Brand Name : ruiting
Model Number : RTZH-100B
Certification : CE
Place of Origin : China
MOQ : 1 set
Price : Negotiation
Payment Terms : L/C, T/T, Western Union
Supply Ability : 25 sets per month
Delivery Time : 30 working days
Packaging Details : wooden case
Voltage : 380V,3phase,50HZ
Automatic grade : Automatic
After-sales service provided : Engineers available to service machinery overseas
Packaging type : Cartons
Weight : 3800KGS
Dimension(l*w*h) : 5500*1650*1650MM
Product name : 100B Flow Packing With Cartoning Machine For Auto Parts Products
Condition : New
Main features
1)International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2)Adopt human-machine operation system.
3)Automatically stop when machine is overload.
4)Automatically reject lacking of package product and leaflet.
5)Automatically display trouble, Alarm and count finished products.
6)Stable performance,operation is easy.
Main technical specification:
| Cartoning speed | 30-100Box/min | |
| Dimension range(L×W×H) | L(160-200)*W(100-160)*H(10-70)mm | |
|
Leafle
| Thickness requirement | 55-65g/㎡ |
| Voltage | 380V, 3 phase,50HZ( can make according to your request) | |
| Box size (Max.) | 260*190mm | |
| Box size(Min.) | 100*100mm | |
| Power | 1.5KW | |
| Machine size | L5500*W1650*H1650MM | |
| Weight | 3800KGS | |
| Compressed air | ≥0.6mpa, 20m³/H | |
Widely usage:Pharmaceuticals, food,cosmetics, daily necessities, toys and other industries
Material details:
| carton box thickness | 250-450gsm |









|
|

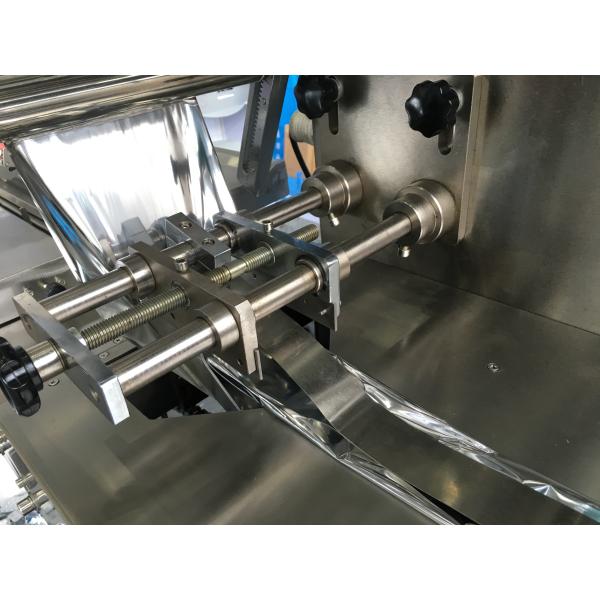

100 Box/min Flow Wrap Packaging Machine 1.5KW For Auto Parts Products Images |
