Letterpress Aluminum Foil Flexographic Printing Paper Cutting Machine Online

Brand Name : ruiting

Model Number : RTRY-450-4

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20 sets/month

Delivery Time : in 30 days after receiving the deposit

Packaging Details : Wooden Case

Weight : 3000kg

Printing speed : 120m/min

Warranty : 1 Year

Plate thickness : according your require

Dimensions(l*w*h) : 3000mmX2000MMX 1500MM

Automatic grade : Automatic

Usage : Label Printer,Paper Printer

Color : Multi color printing

Media type : Flex

Gross power : 30kw

Contact Now

Inline Letterpress Aluminum Foil Online Flexographic Printing Paper Cutting Machine For Sale

Product Description

Strong connection processing capability: printing (flexographic printing, gravure printing, silk screen printing), die-cutting, creasing, punching, folding, waste discharge, and flat sheets (break-sheet stacked delivery) can be realized (broken sheets) High stacking paper delivery), slitting, bronzing, laminating, self-adhesive peeling printing and laminating processes.

Material details:

Printing material paper,foil, PVC, PET
Printing ink water based ink
Printing plate thcikness 1.7mm(according clinet require make)

Main features

  • Ceramic anilox cylinder to transfer the ink
  • Automatic magnetic powder brake controller for unwinding & rewinding
  • Tension controller for unwinding
  • Tension controller for rewinding
  • Printing unit: 360°Plate-adjustment
  • IR dryer for printing unit,
  • Web guide system in the machine
  • 2 pcs 3 inch air shaft both unwinding and rewinding
  • Touch screen display
  • Frequency converter for speed controlling
  • 1 set plate cylinders and 1 set ceramic anilox rollers

Main technical specification:

Model RTRY-450
Printing speed 120m/minute
Printing color number 4 color
Max width of paper 450mm
Max printing wide 450mm
Max unwinding diameter 600mm
Max rewinding diameter 600mm
Printing length 175-650mm
Precision of overprint ±0.1mm
Overall dimension 3.0(L)×2.0(W)×1.5(H)m
Weight about 3000kg

Optional parts:(can add as your request)

  • cold stamping (with out uv)
  • Cold laminating
  • Corona treatment device
  • Sheet cutting
  • Sheet conveyor
  • Turn bar
  • Slitting system

  • UV dryers

Letterpress Aluminum Foil Flexographic Printing Paper Cutting Machine OnlineLetterpress Aluminum Foil Flexographic Printing Paper Cutting Machine OnlineLetterpress Aluminum Foil Flexographic Printing Paper Cutting Machine OnlineLetterpress Aluminum Foil Flexographic Printing Paper Cutting Machine Online

Letterpress Aluminum Foil Flexographic Printing Paper Cutting Machine OnlineLetterpress Aluminum Foil Flexographic Printing Paper Cutting Machine OnlineLetterpress Aluminum Foil Flexographic Printing Paper Cutting Machine Online

Letterpress Aluminum Foil Flexographic Printing Paper Cutting Machine Online


Product Tags:

Online Flexographic Printing Paper Cutting Machine



Letterpress Aluminum Foil Paper Cutting Machine



Online Flexographic Printing Machine


Wholesale Letterpress Aluminum Foil Flexographic Printing Paper Cutting Machine Online from china suppliers

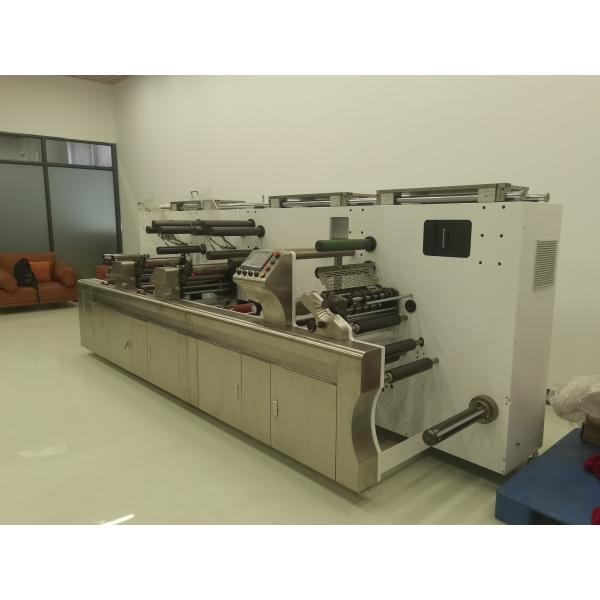

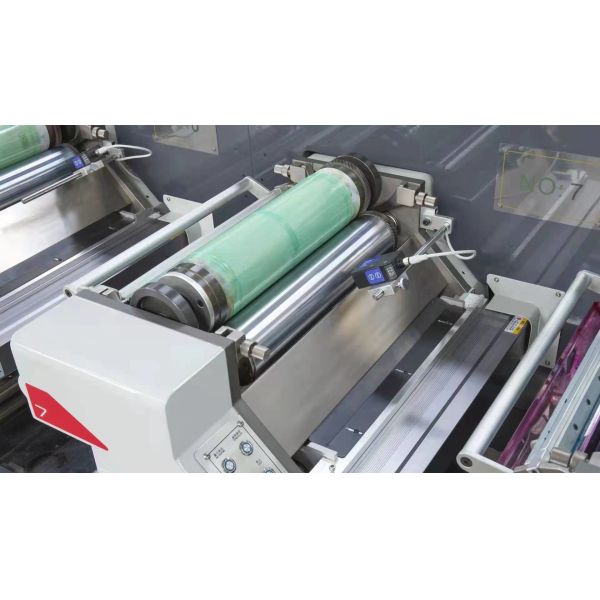

Letterpress Aluminum Foil Flexographic Printing Paper Cutting Machine Online Images
