Automatic Pvc Slitting Machine 120m/Min Paper Roll Slitting Rewinding Machine

Name: Automatic Pvc Slitting Machine 120mMin Paper Roll Slitting Rewinding Machine
Brand: ruiting
Price: 1 USD

Wholesale Automatic Pvc Slitting Machine 120m/Min Paper Roll Slitting Rewinding Machine from china suppliers

Brand Name : ruiting

Model Number : RTFQ-800A

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 35 sets per month

Delivery Time : 30 working days

Packaging Details : wooden case

Weight : 800KGS

Warranty : 1 Year

Computerized : Yes

Voltage : 220V/380V

Dimension(l*w*h) : 1600*1600*1400mm

Product name : 800 Auto Sticker PVC Film Label Slitter Rewinder Machine

Speed : 120m/min

Max.rewind diameter : 500mm

Max unwinding diameter : 600mm

Contact Now

800 Auto Sticker PVC Film Label Slitter Rewinder Machine

Product Description

This machine slitting material from wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material.

Main features

1) 8 sets of round knife in the machine

2) Unwinding and rewinding controlled by magnetic powder brake and clutch

3) Use one photocell for web guide

4) Taper tension control

5) Have meter counting

6) Use frequency inverter to control the speed

Main Technical Specification:

Max web width	800mm
Max rewinding diameter	500mm
Max. unwinding diameter	600mm
Min width	25mm
Power Supplier	AC380V, 3 phase
Cutting precision	0.2mm
Cutting speed	10-120m/min
Overall dimensions(LWH)	1.61.21.4m
Machine weight	700kg

Automatic Pvc Slitting Machine 120m/Min Paper Roll Slitting Rewinding Machine

Product Tags:

PVC Automatic Pvc Slitting Machine

Automatic Pvc Slitting Machine 120m/Min

120m/Min Paper Roll Slitting Rewinding Machine

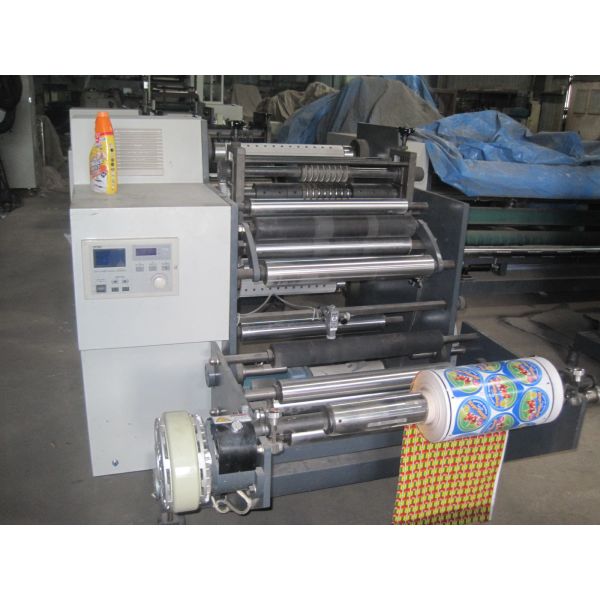

Automatic Pvc Slitting Machine 120m/Min Paper Roll Slitting Rewinding Machine Images
