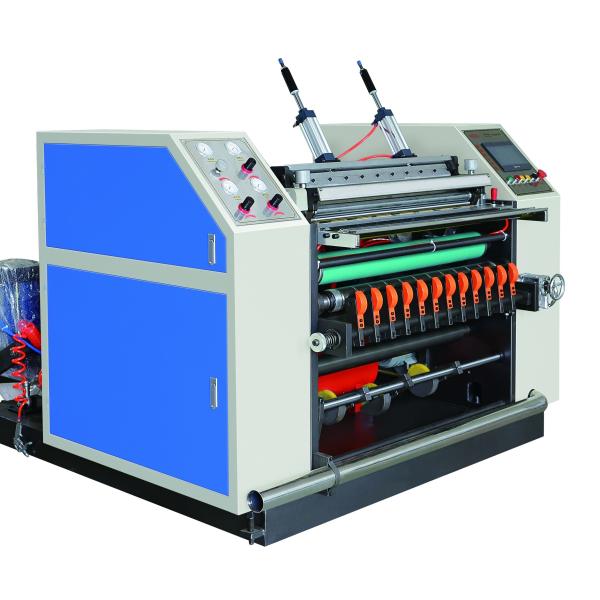

900 model thermal paper slitting and rewinding machine with coreless rewinder
Product Description
This ATM register thermal paper slitting rewinding machine is mainly for slit ATM receipt. It also can rewind without paper core.
Main features
1.Unwind use hydraulic auto loading system
2.Slitting width: ≧30mm
3.Rewinding shaft inner diameter: can make according to your request or coreless
4.And will offer you total 4 pcs rewinding shaft
5.Max. Rewinding diameter: Φ120mm
6.Slitting knife: 16 sets
7.PLC language use both English and Chinese
8.Machine voltage: 380V, 3 phase
Main Technical Specification:
| Max. web width | 865mm |
| Max. unwinding diameter | Φ1100mm |
| Max. rewinding diameter | Φ120mm |
| Slitting width | ≥30mm |
| Unwinding shaft | 3 inch (can make as your request) |
| Rewinding shaft | 0.5inch, 1 inch( can make as your request) or coreless 8mm |
| Power supplier | AC380V±10%50HZ |
| Slitting precision | ±0.2mm |
| Total power | 3KW |
| Cutting speed | 5-160m/min |
| Overall dimensions(L*W*H) | 2.05*1.9*2.05m |
Material details:
| Slitting material | 50-400gsm thermal paper |
| cutting knife | round knife as your request |
| Unwind put diameter | can make machine according to your material max.size |
| Rewind diameter | can customize |
FQA
1.Are you factory or trading company?
We are factory.
2.What is your after service?
We offer customer a lifetime service.
3.Do you have CE certificate?
Yes, we have CE certificate of our machines.
4.What is the shipping time?
Around 15-30 days, depend on different model.
5.What can I do if machine stop work?
You can email us, call us or online video calls, face to face solve problem.
If the spare parts or something broken, in the warranty time,
we offer free.
