1.5Kw Blister Packing Machine , High Speed Blister Packaging Equipment

Ruian Ruiting Machinery Co., Ltd.
Contact Now

1.5Kw Blister Packing Machine , High Speed Blister Packaging Equipment

Brand Name : ruiting

Model Number : RTZP-5260

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30 sets per month

Delivery Time : 20 working days

Packaging Details : wooden case

Voltage : 380V/220V 50Hz

Automatic grade : Automatic

Weight : 3800kgs

Dimension(l*w*h) : 6300*1300*1750mm

After-sales service provided : Engineers available to service machinery overseas

Packaging material : PVC /PET

Product name : Blister Packing Machine

Name : 5260 Automatic High Speed Blister Packaging Equipment

Contact Now

Product Description

5260 Automatic High Speed Blister Packaging Equipment

Main features

The RT-5260 Blister packing machine is a new generation based on DZP-500 serials blister packing machine.It is consisted of one blister forming-cutting machine and one blister sealing machine.Easy for installation and transportation.It has much bigger forming area to meet most commodity packaging.

Application:

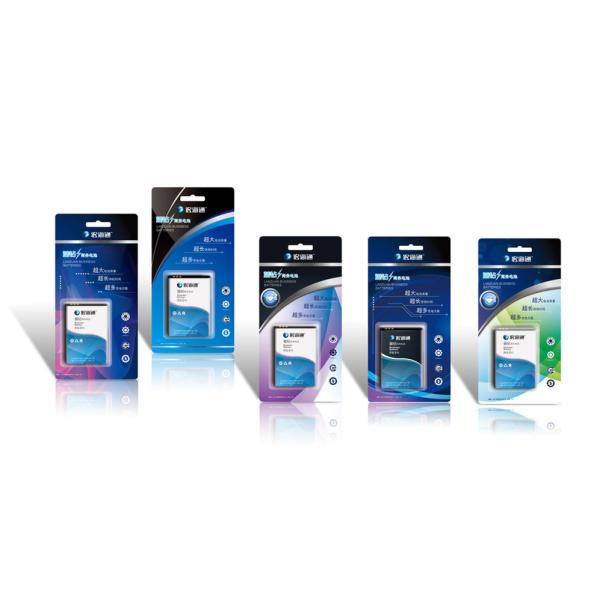

It is suit for daily use, stationery, minor hardware, cosmetics, medicines, as well as battery, toothbrush, pens, glues, plug base, bearing, etc. to improve the grade of the finished products.

Main Technical Specification:

Model RTZP-5260
Packing Material PVC sheet

Thickness(0.15-0.5)*320mm

Diameter 420mm

Cardboard (200-700)g Max.500*155mm
Compressed air Pressure (0.55-0.8) Mpa
Air consumption quantity≥0.3m/min
Power consumption 380V50Hz 7-12Kw
Main motor power 1.5Kw
Top heating board power 1.2Kw
Under heating board power 1.2Kw
Sealing board power 200WX12X2=4.8Kw
Mould cooling water Running water or circle water consumption50L/h
Overall dimension L*W*H 6300X1300X1750mm
Weight Approx.3800 Kg
Production capacity 10-30 punches/min
Travel range 40-220 mm
Max forming area and depth

500X220X50 mm

(According to customer's requirement)
